Product Description

Static Transfer Switch

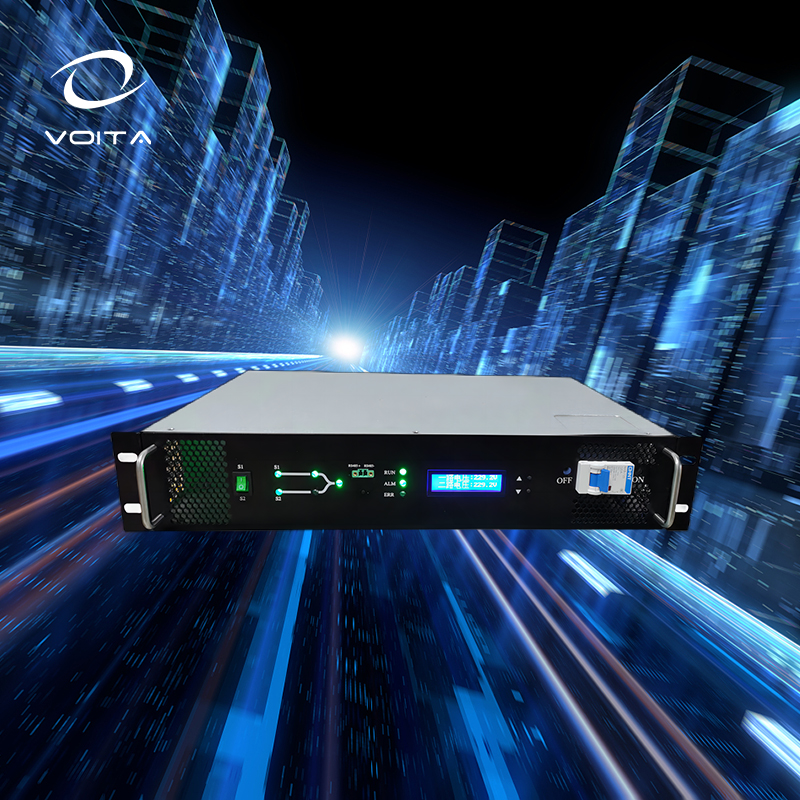

STS Power Supply
■ Product Overview
The static transformer switch (STS) is an AC switch with two inputs. Normally, one AC input is on and the other is off. One AC input provides power to the load. When one power supply is abnormal, the STS automatically switches to the other power supply to ensure that the load is continuously powered by the other power supply.
■ FEATURES AT A GLANCE
STS Device Features
STS AC dual power switching device adopts high-speed static contactless switching principle design, with the following characteristics:
✔ Full digital control, strong anti-interference ability, fast running speed.
✔ Switching time ≤4ms, high reliability.
✔ Strong load capacity, can withstand full load boot.
✔ With input over and under voltage, over current and other protection functions.
✔ Front panel with display screen and indicator light for intuitive status information.
✔ Neutral line can be switched at the same time (STS version dependent).

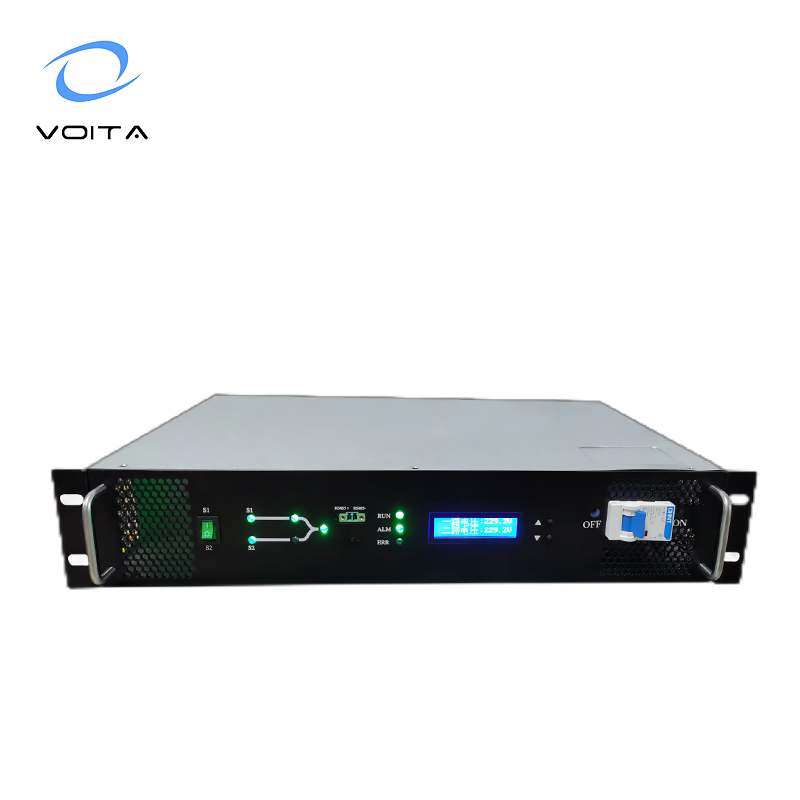

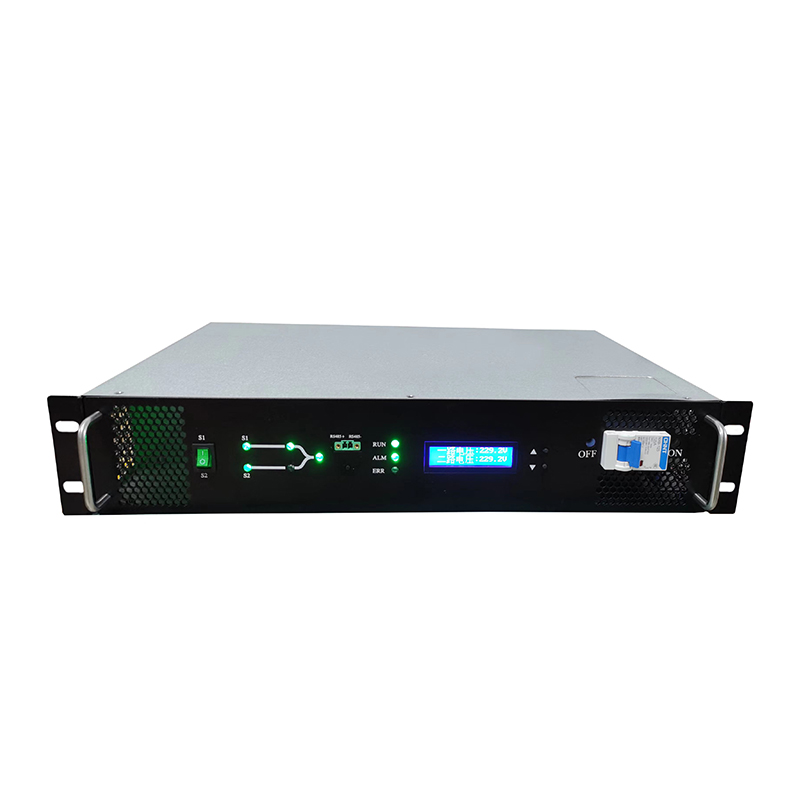

STS front

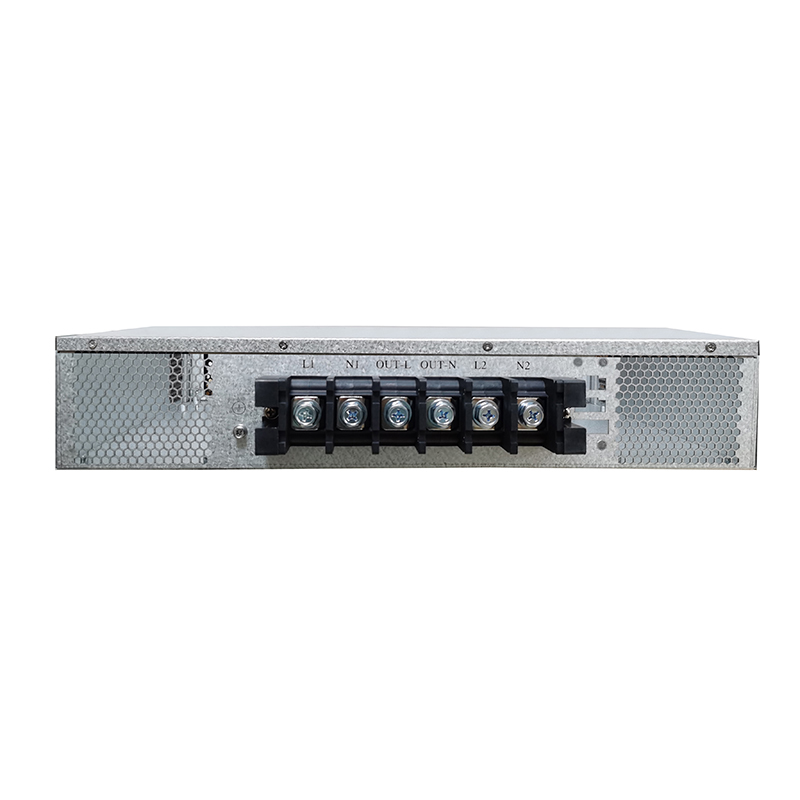

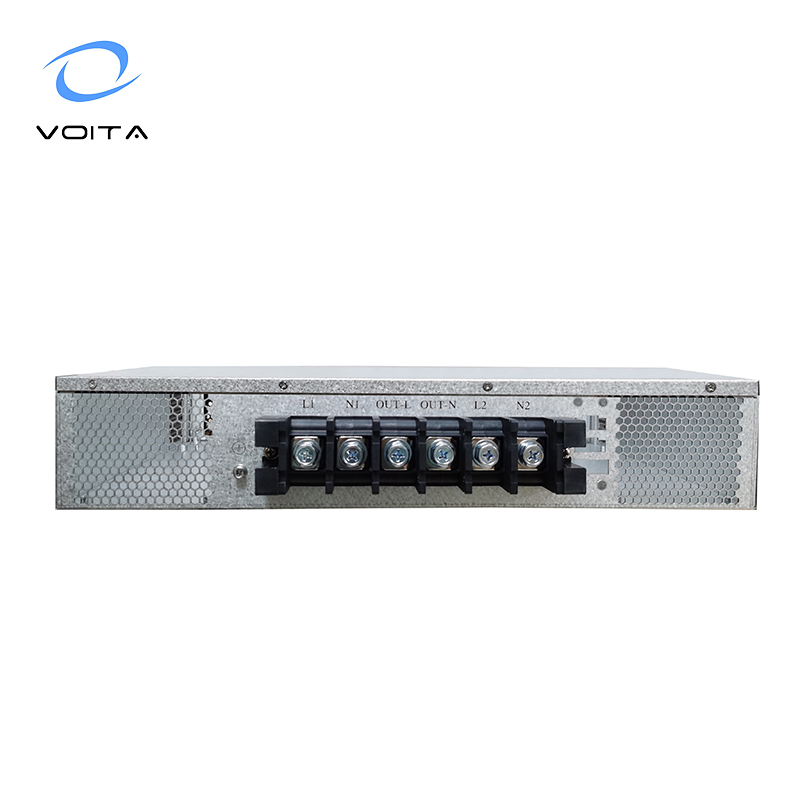

STS back

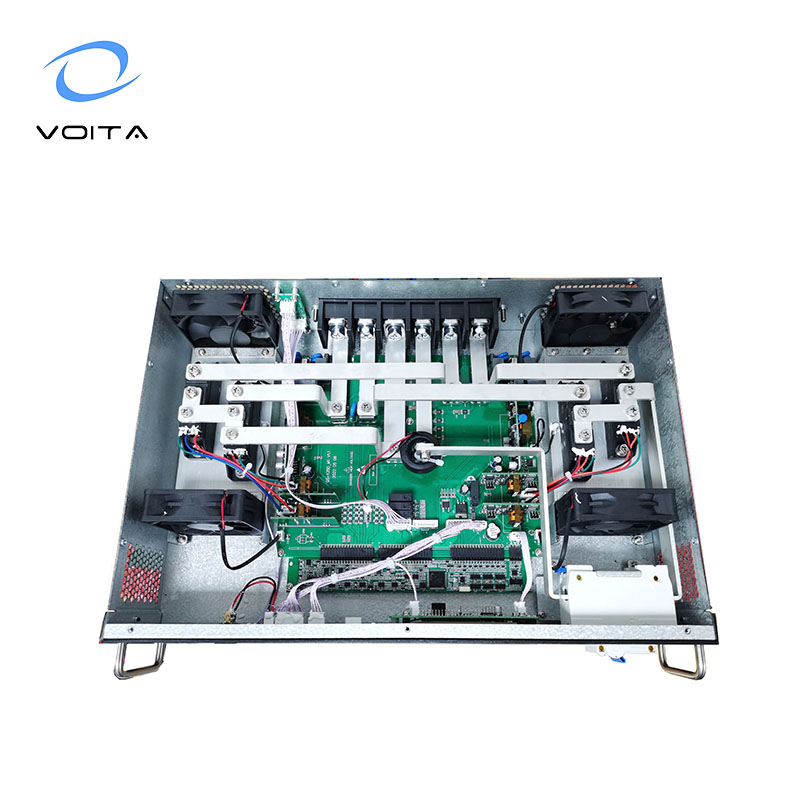

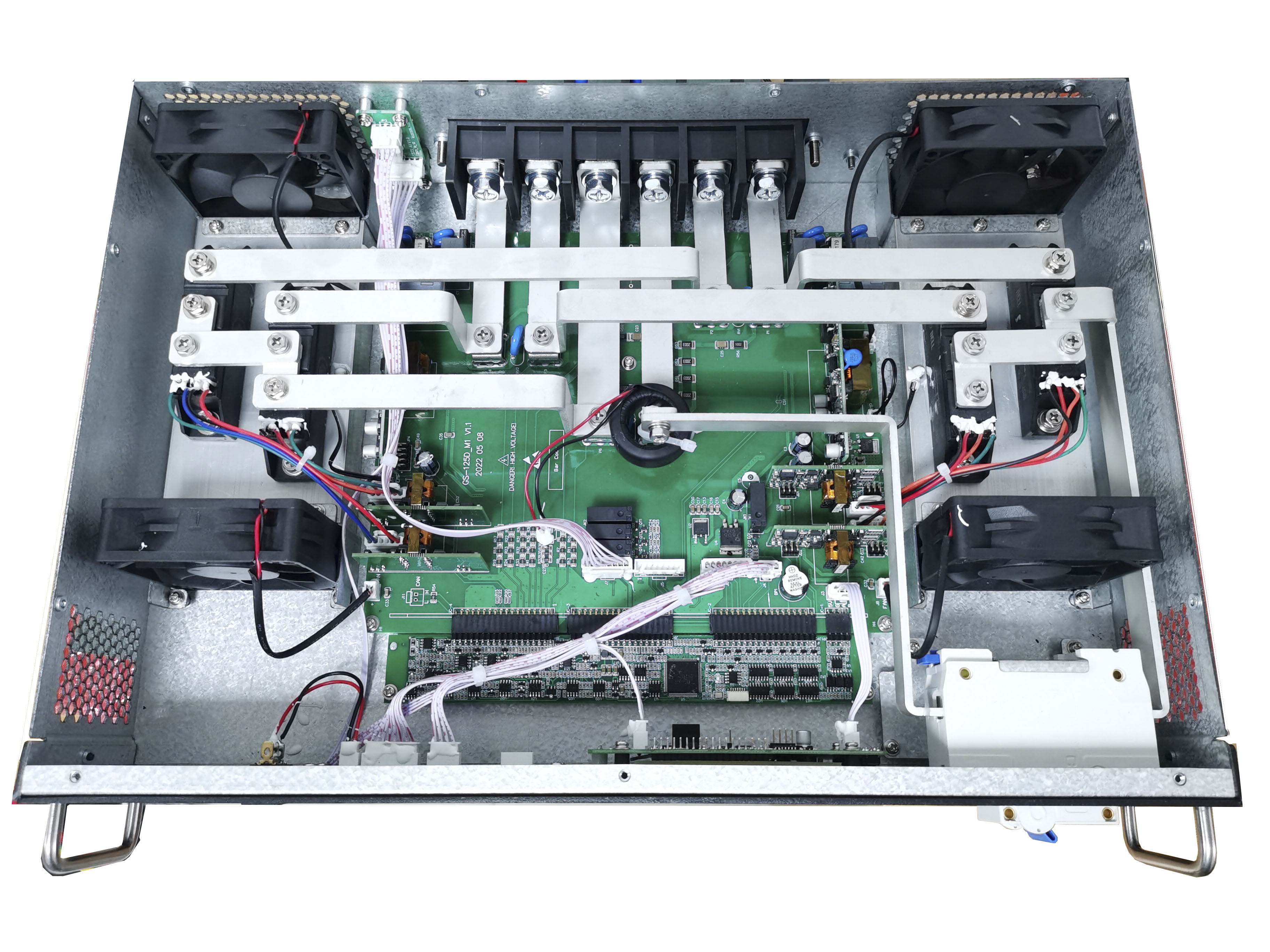

STS side
■ PRODUCT SPECIFICATIONS
Parameter Item Specification Details
Switch Over Switching Time ≤4ms
Principle High-speed static contactless switching
AC Input Rated Voltage 220VAC
Rated Voltage Range 190～260VAC
Rated Frequency 50HZ
Power Factor 1
Auto Switch Threshold (Voltage) Under-voltage：190Vac ± 5Vac; Over-voltage：260Vac ± 5Vac
Auto Switch Threshold (Freq) 50HZ ± 10%, backlash ± 2HZ
Over-limit Shutdown (Voltage) ≤160Vac or ≥ 265Vac, backlash ±5V
Operation Over-limit Shutdown (Freq) ≤45Hz or ≥65Hz, backlash ±0.2Hz
Over Load Capacity Load current ≤ 110%, continuous; Load current > 110%, shutdown in 60ms
Communication Interface RS485
Environment Dielectric Strength 2KVAC, 1min
Noise (1m) ≤55dB
Ambient Temp Operation: -25～50℃; Storage: -40～70℃
Altitude ≤3000m (Derating above 2000m)
Protection Function Input under voltage, over voltage, output overload, over temperature, short circuit protection
Technical Drawing
■ Frequently Asked Questions (FAQ)
Q1: What is the switching time of the Static Transfer Switch? A: The switching time is extremely fast, typically ≤4ms, ensuring continuous power to the load.
Q2: What are the main protection functions integrated in this device? A: It includes input over/under voltage protection, output overload protection, over-temperature protection, and short circuit protection.
Q3: Can the STS handle a full load during startup? A: Yes, it is designed with a strong load capacity and can withstand a full load boot.
Q4: Does the device provide a local monitoring interface? A: Yes, the front panel is equipped with a display screen and indicator lights to intuitively monitor the status of the STS.
Q5: What is the operating temperature range for this switch? A: The device operates effectively in ambient temperatures ranging from -25℃ to 50℃.
Q6: What communication protocol does the STS support? A: The system provides an RS485 communication interface for remote monitoring and management.
